The new lcmd Detail Planning mode seeks to ease the management and visualization of daily tasks. In its Beta release, it includes the following features:
- Upon zoom, visualizing task on the process plan as day cards, including their title, status, assignee, workforce, and if attachments were added.
- If zoom level doesn’t suffice to render all of the above information, showing only the card status
- Renaming of cards by double-clicking on them
- Updating cards’ statuses
- Adding multiple cards per day
- Expanding process containers to see all cards
- Dragging and dropping cards
- Deleting cards by selecting them and pressing Backspace
- Opening the card details
All features have been thoroughly tested on sample projects to ensure that no problems with existing data arise.
This article provides information on the following topics:
- Open/close Detail Planning mode
- Filter Detail Planning mode and zoom levels
- Define, create, and edit daily cards
- Status of daily cards
- Move and delete daily cards
Open/close Detail Planning mode

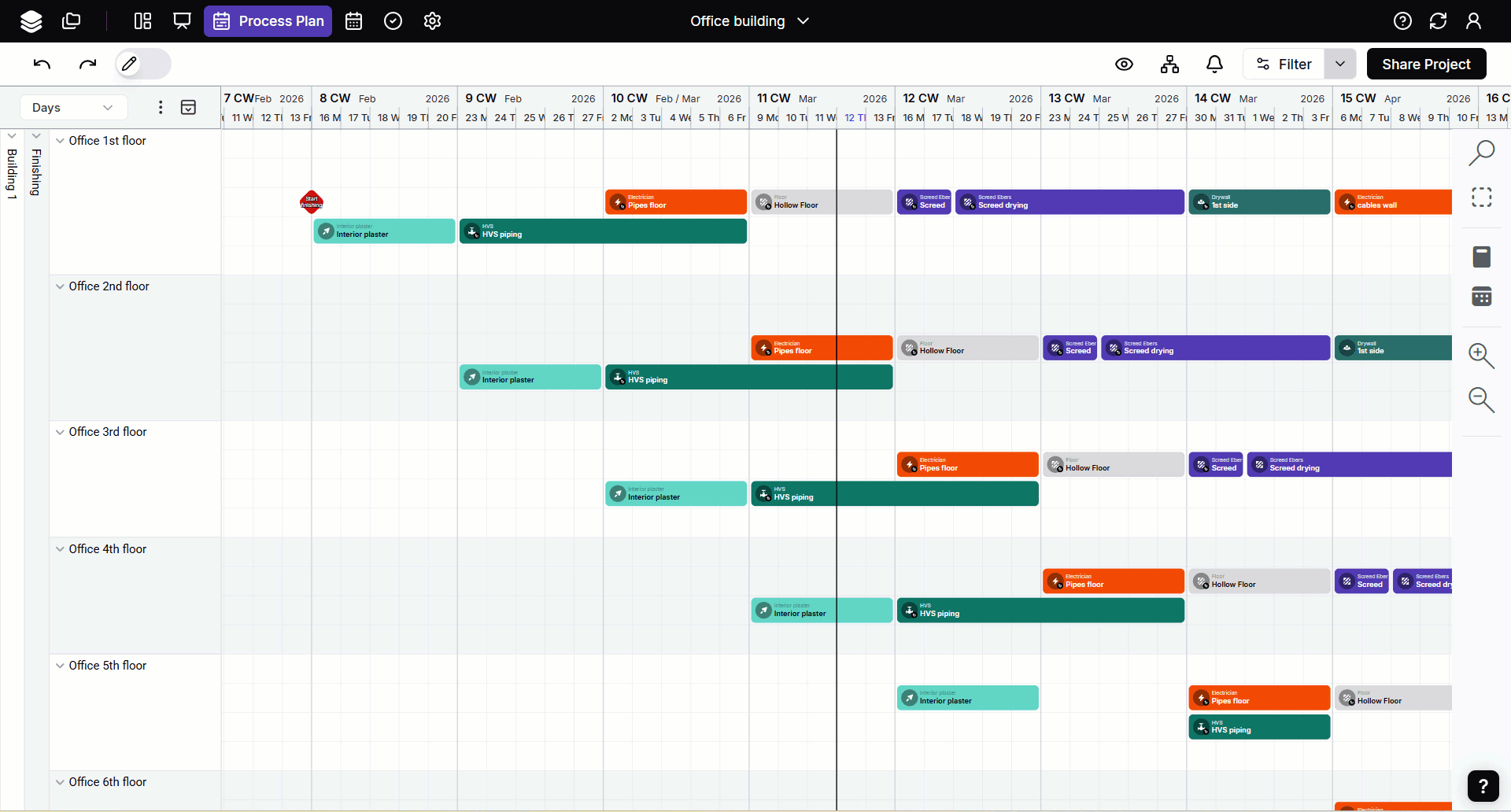

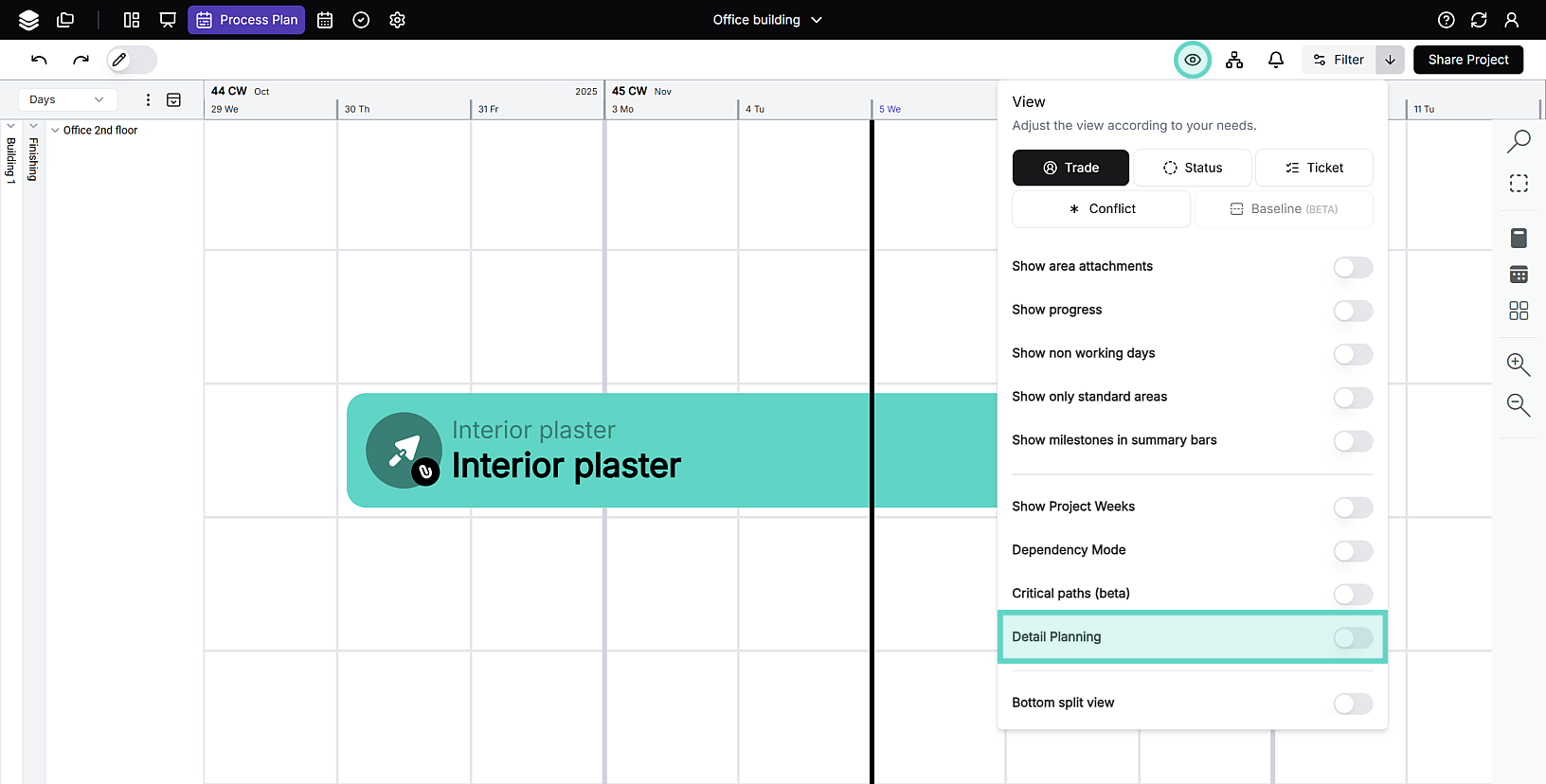

- Open the desired project and navigate to the menu "View" in the process plan.

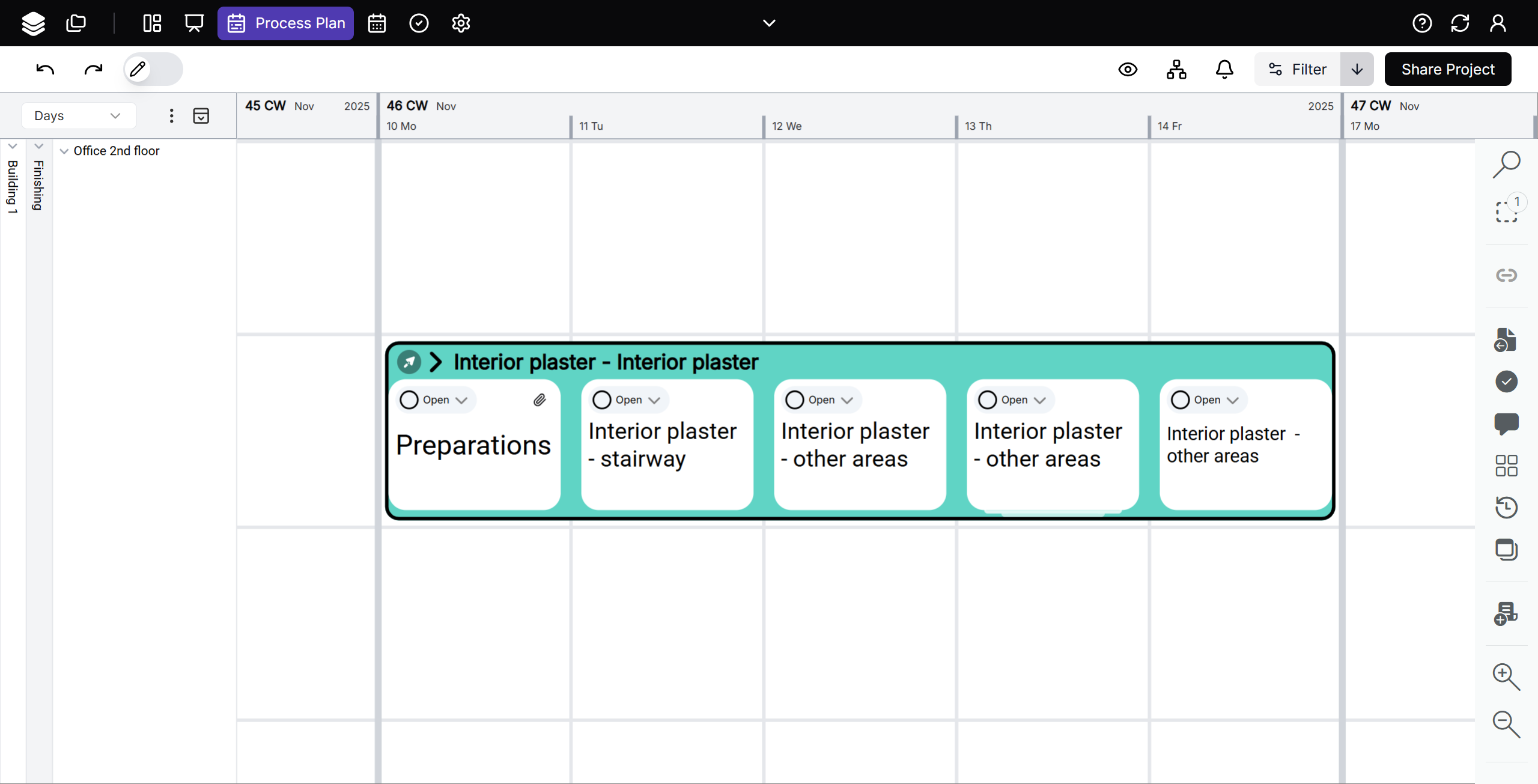

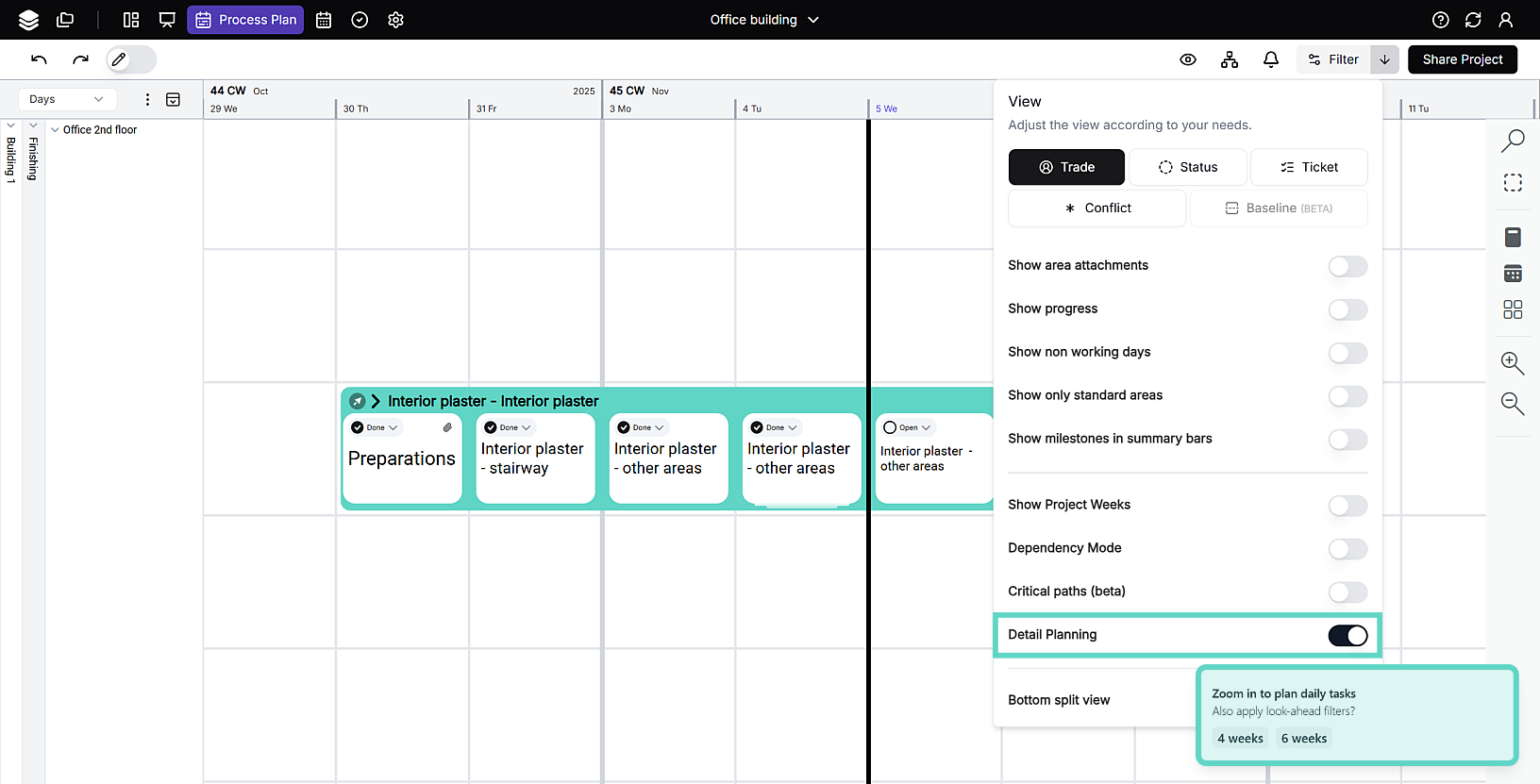

- Activate the "Detail Planning" function there. Depending on the zoom level, you will now see the day cards.
-
In the window at the bottom right, you can also choose between a 4-week or 6-week preview.
4-week preview - When you close the "Detail Planning", you return to the process view.
Filter Detail Planning mode and zoom levels
-

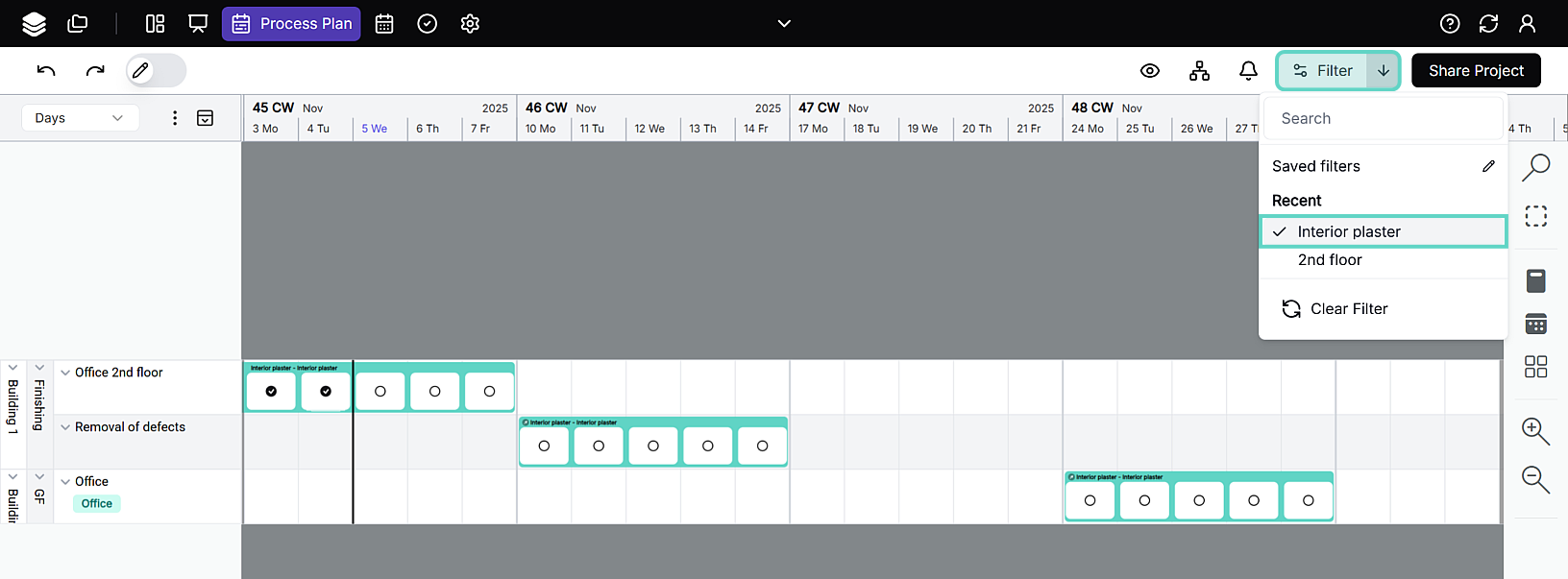

Set filters to focus on the view that is important for your work.
-

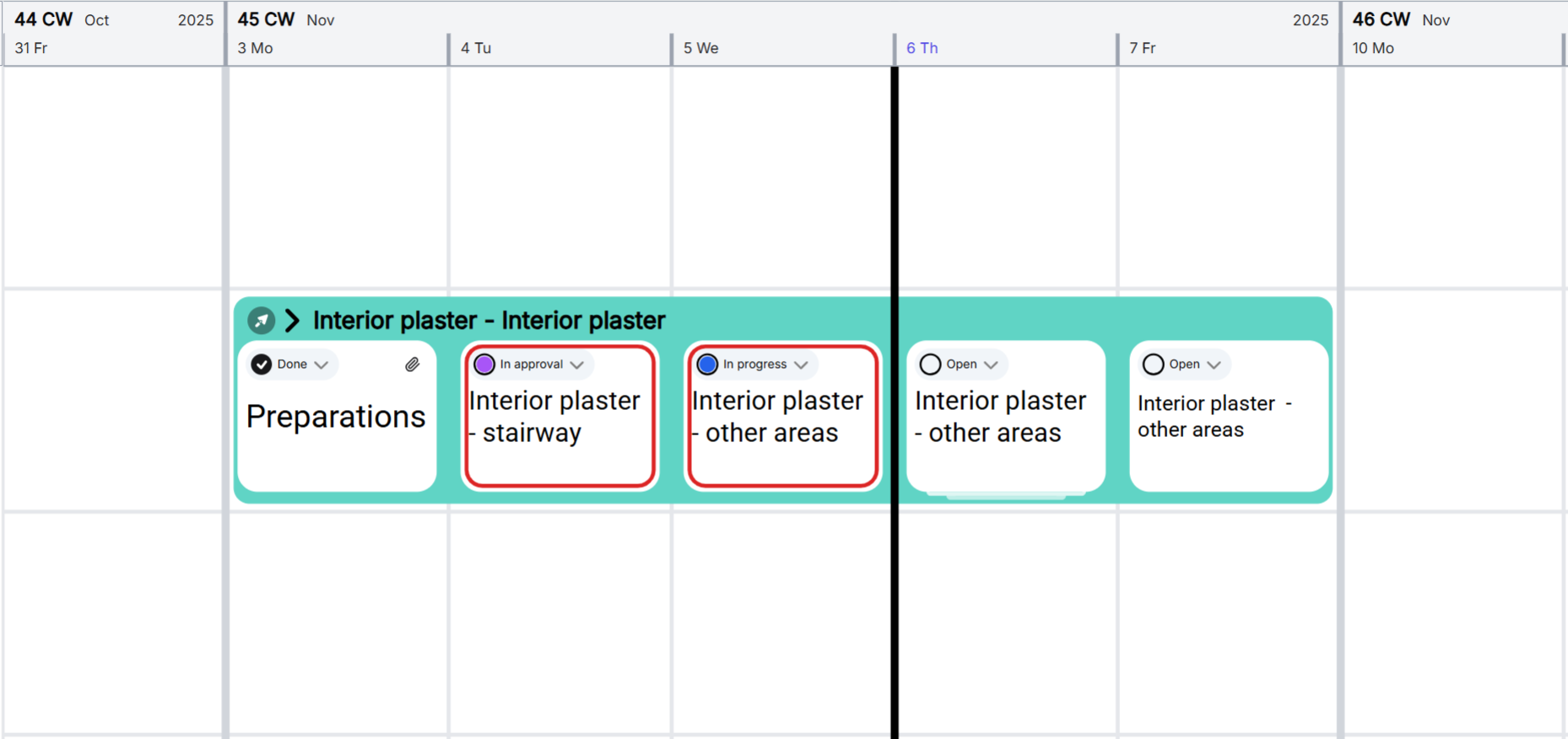

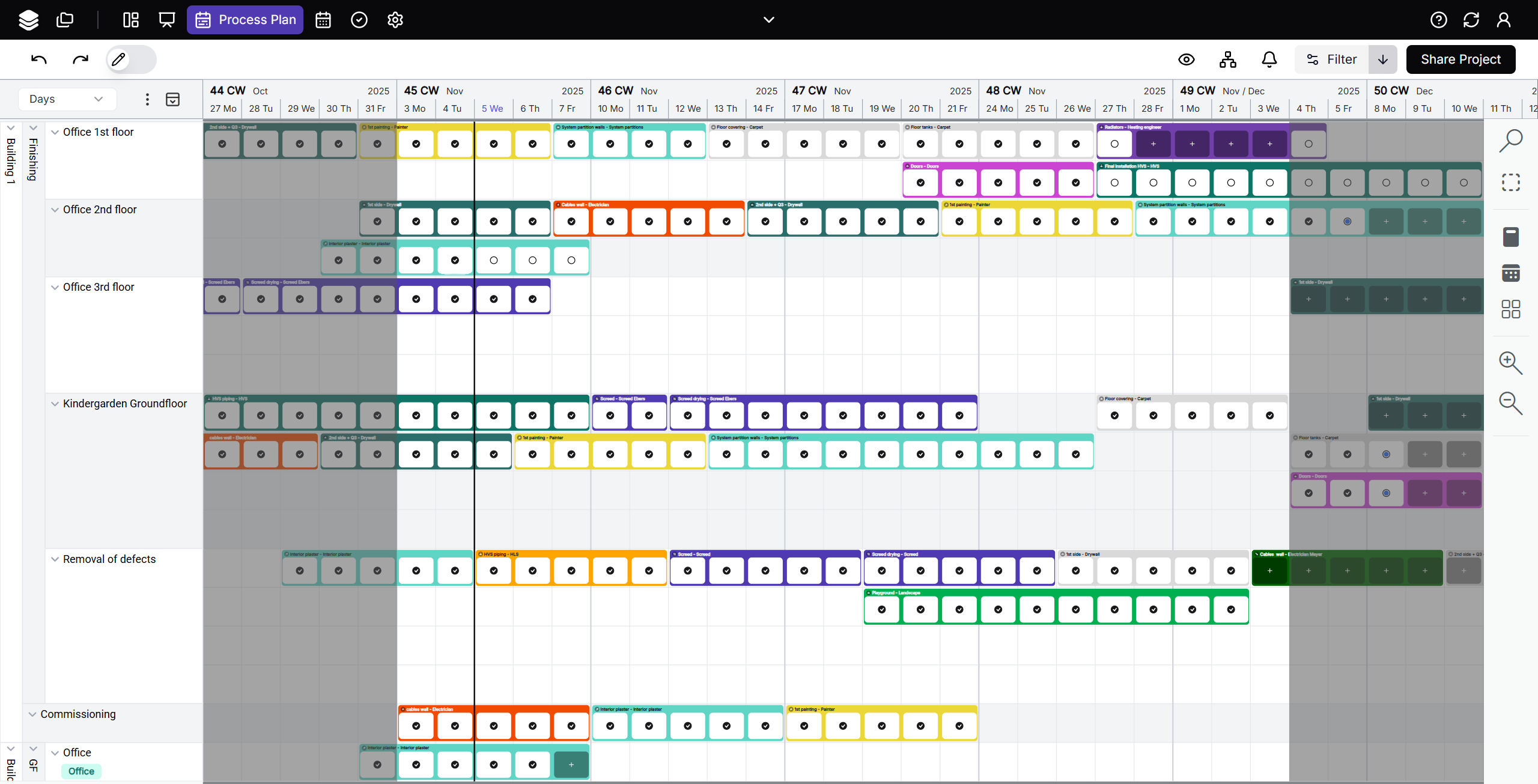

Zoom in to see the individual daily tasks and their status.
-

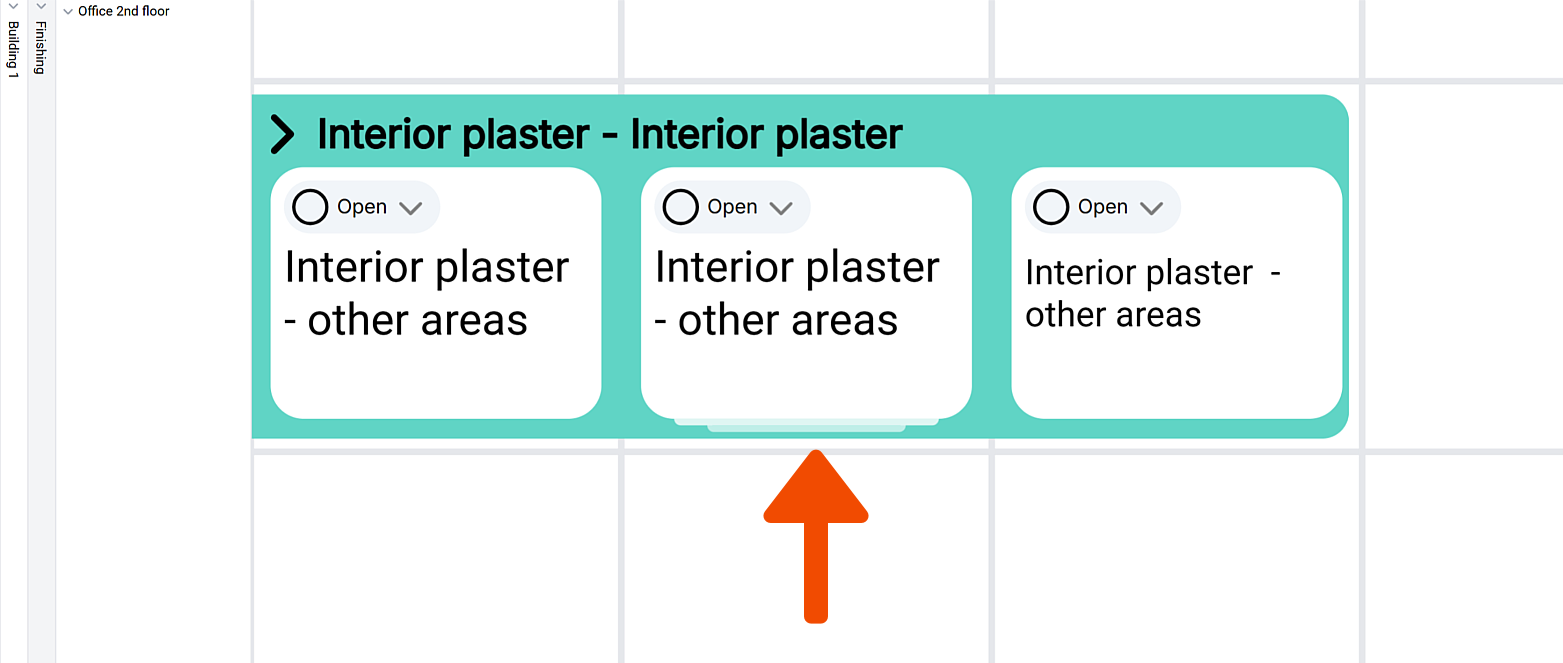

If there are several daily tasks on a given day, a small stack icon will be displayed.
-

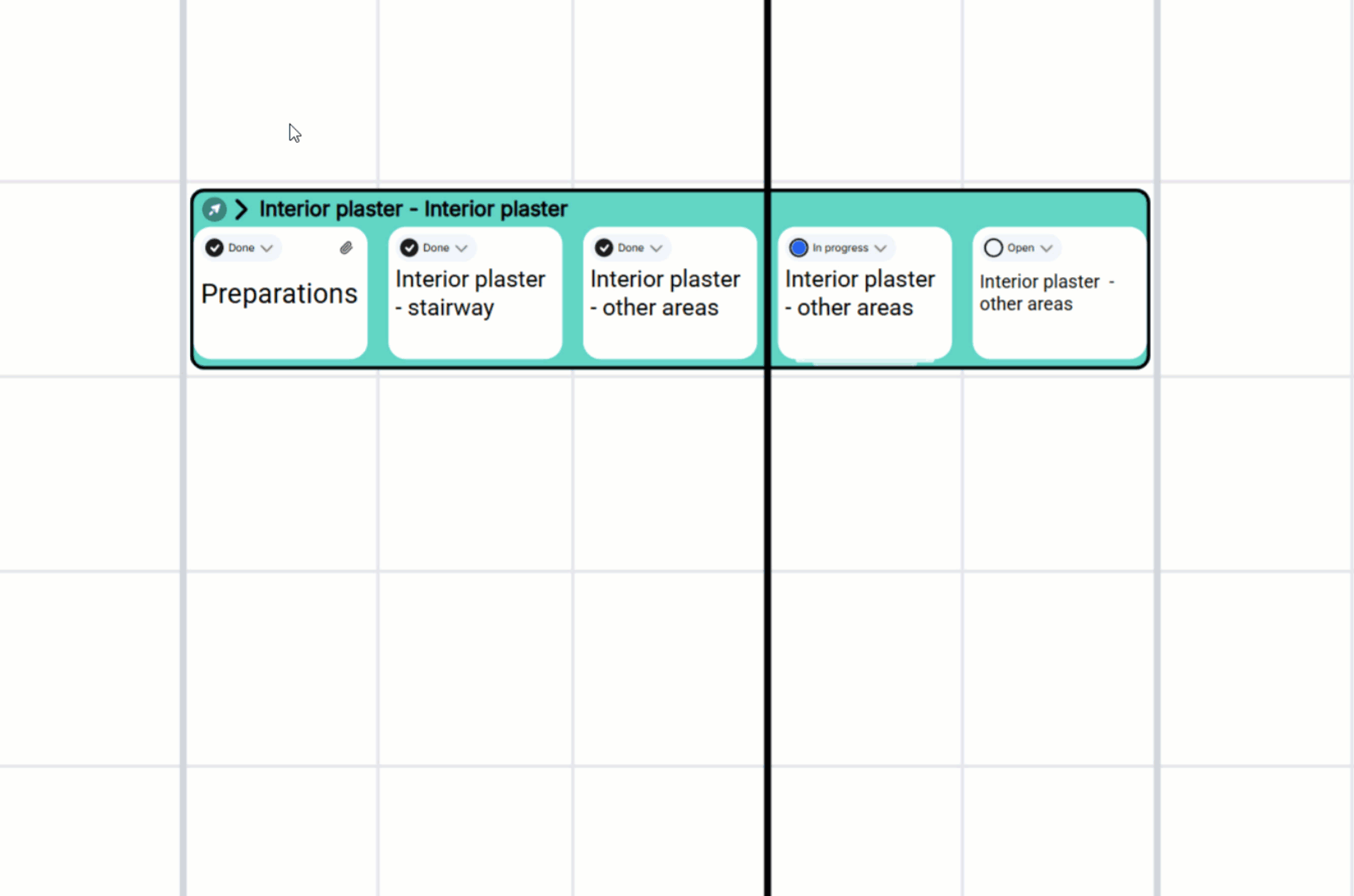

Click on the arrow in the upper left corner to expand the process and display all cards.
-

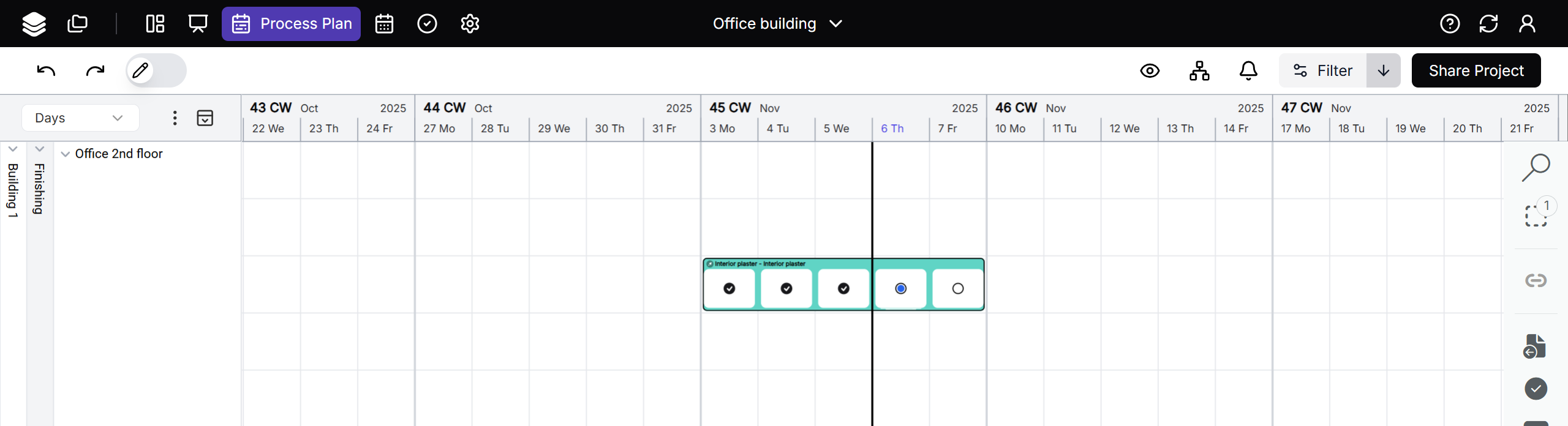

If you zoom out a little, you will only see the status of the daily cards.
-

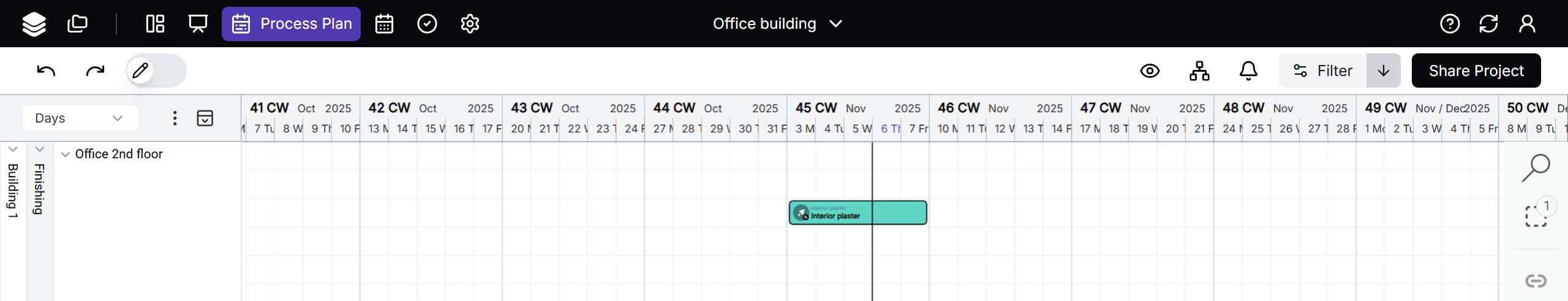

If you zoom out further, the "Detail Planning" view disappears and you see the process itself.
Define, create, and edit daily cards
-

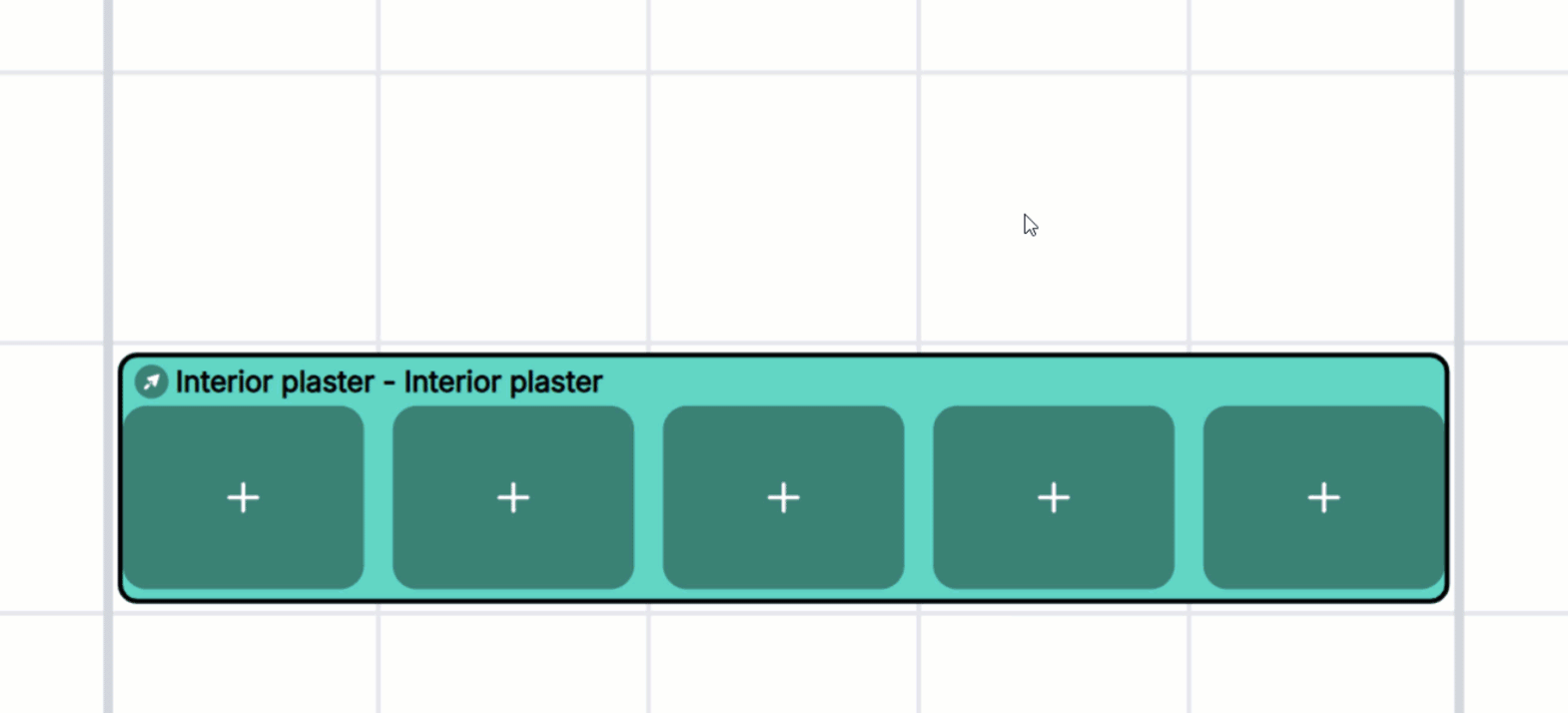

For each process, a day card is automatically generated for each day. If these are not further defined, the designation "undefined" appears after checking off the progress.

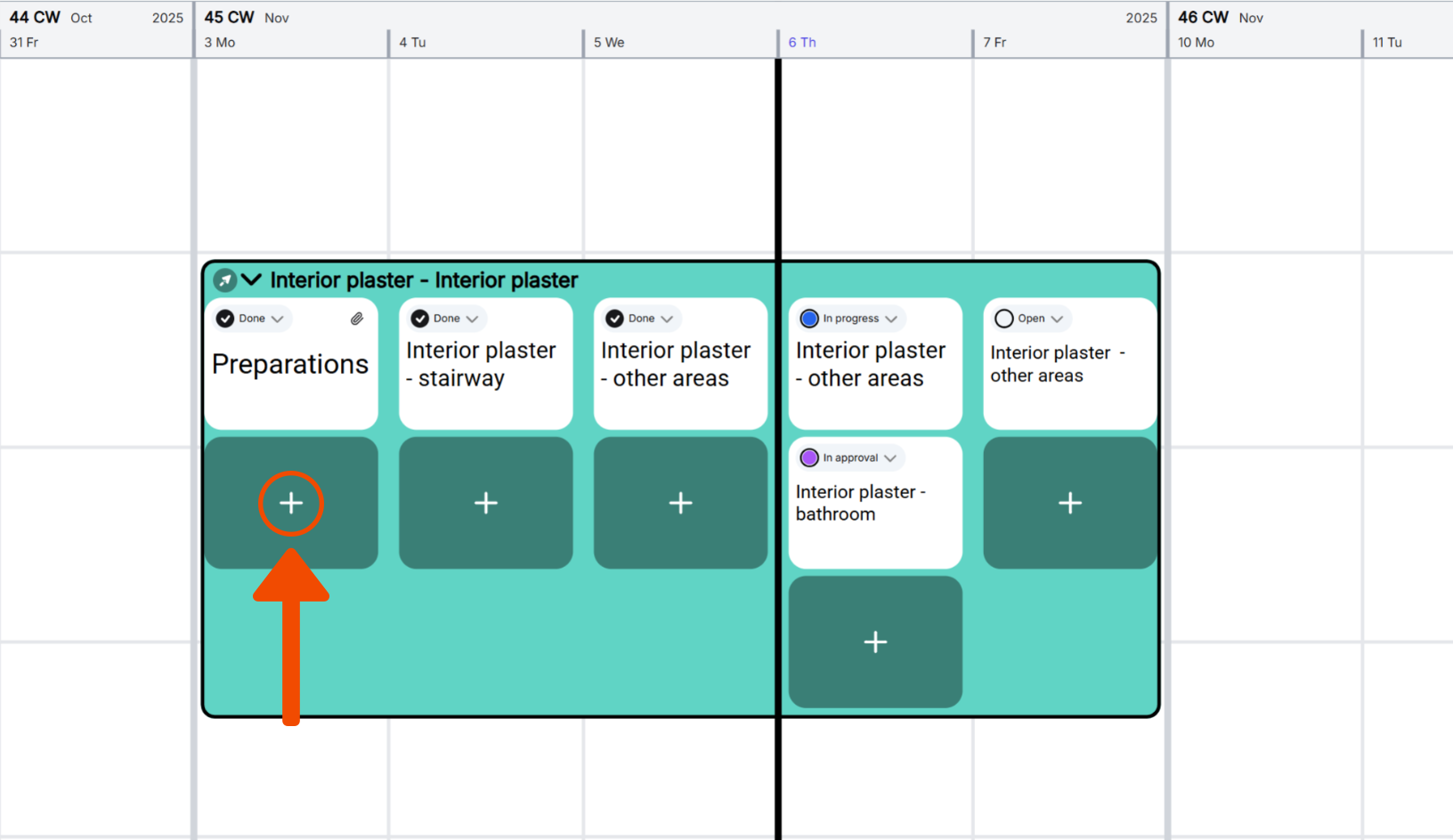

- To define an existing daily task, click on the "+ symbol". Enter a name and confirm with Enter. To change the name, click in the text field again.
-

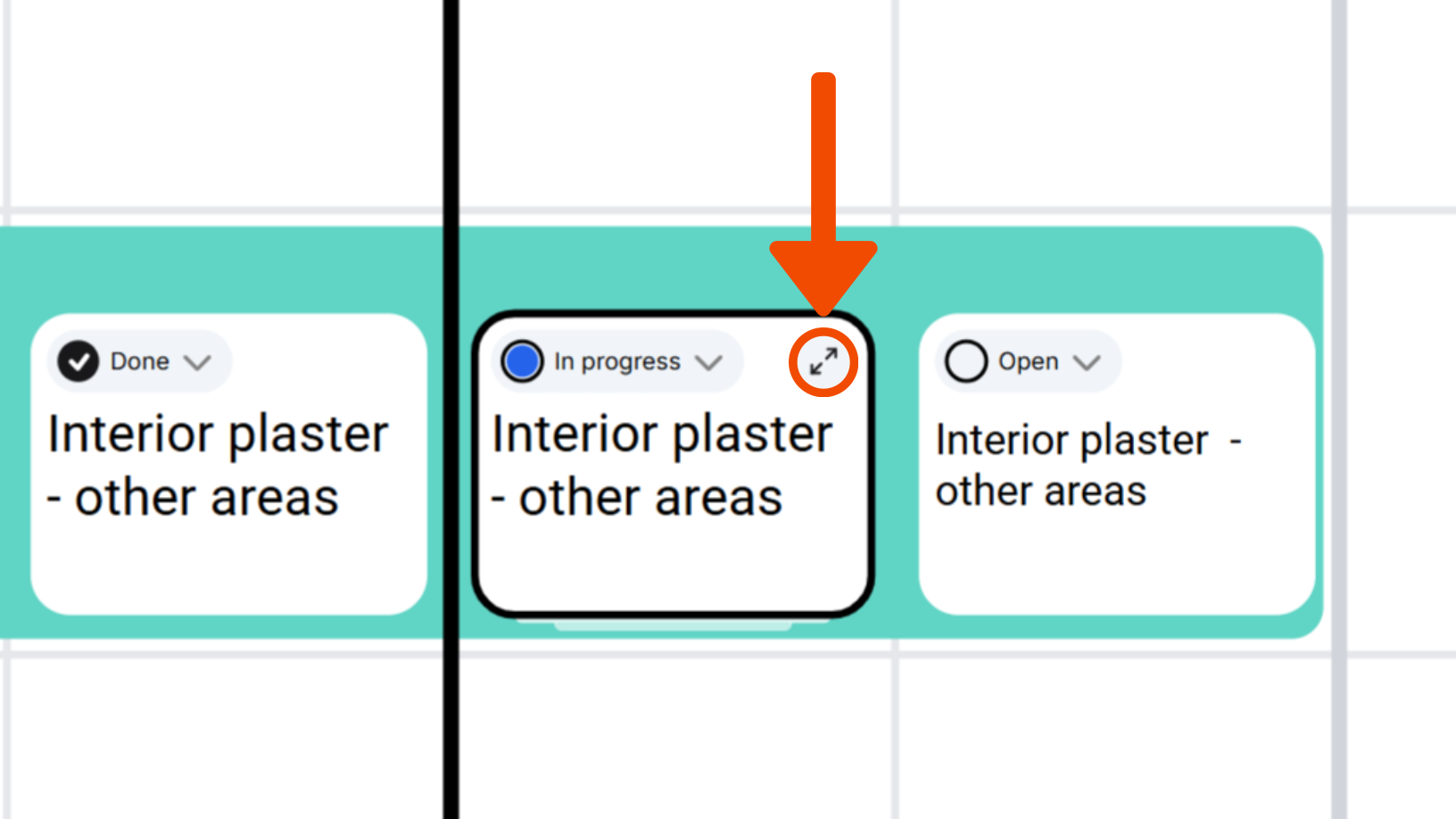

Click on the double arrow to access the detailed view.
-

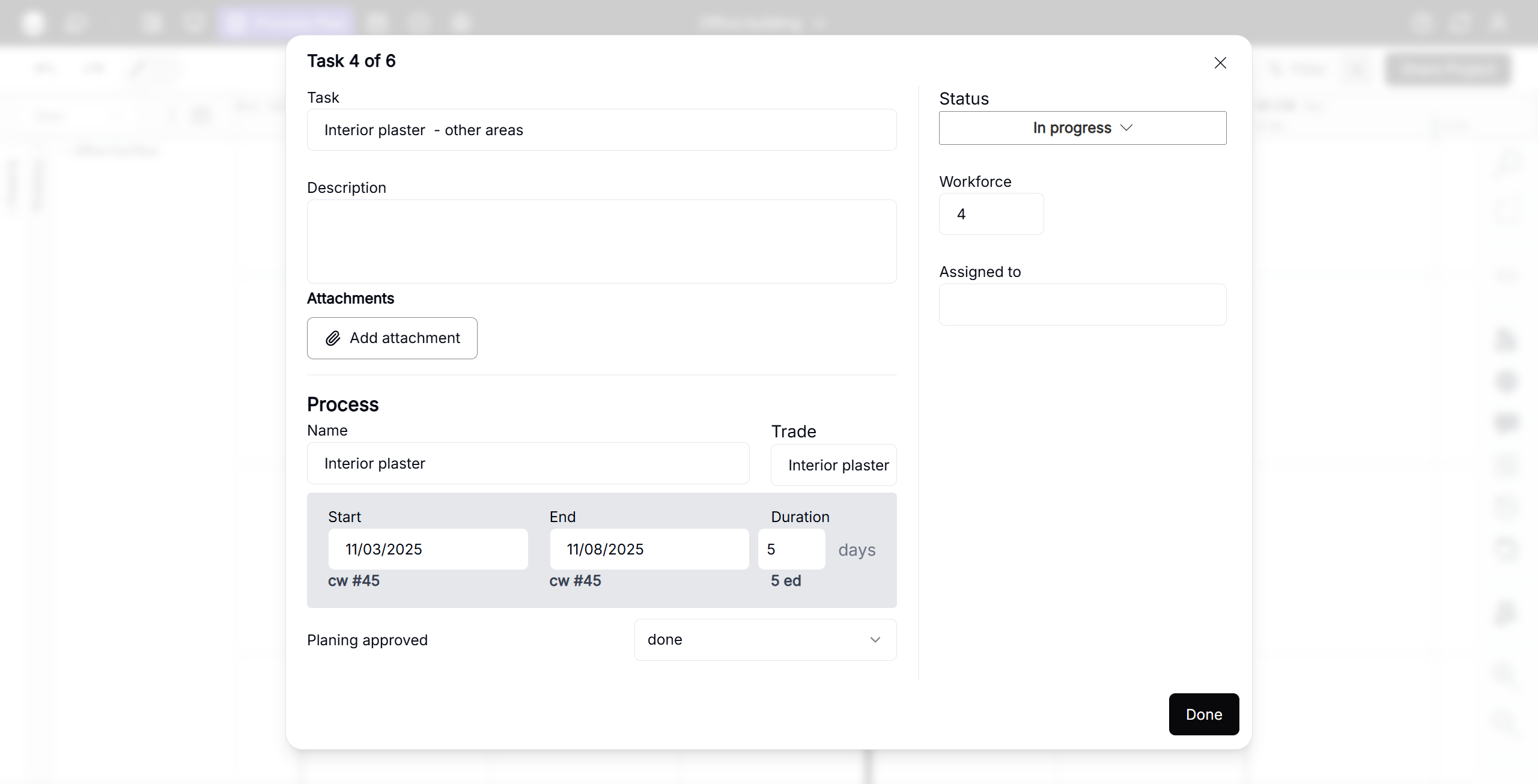

Here you can plan and edit further details.
-

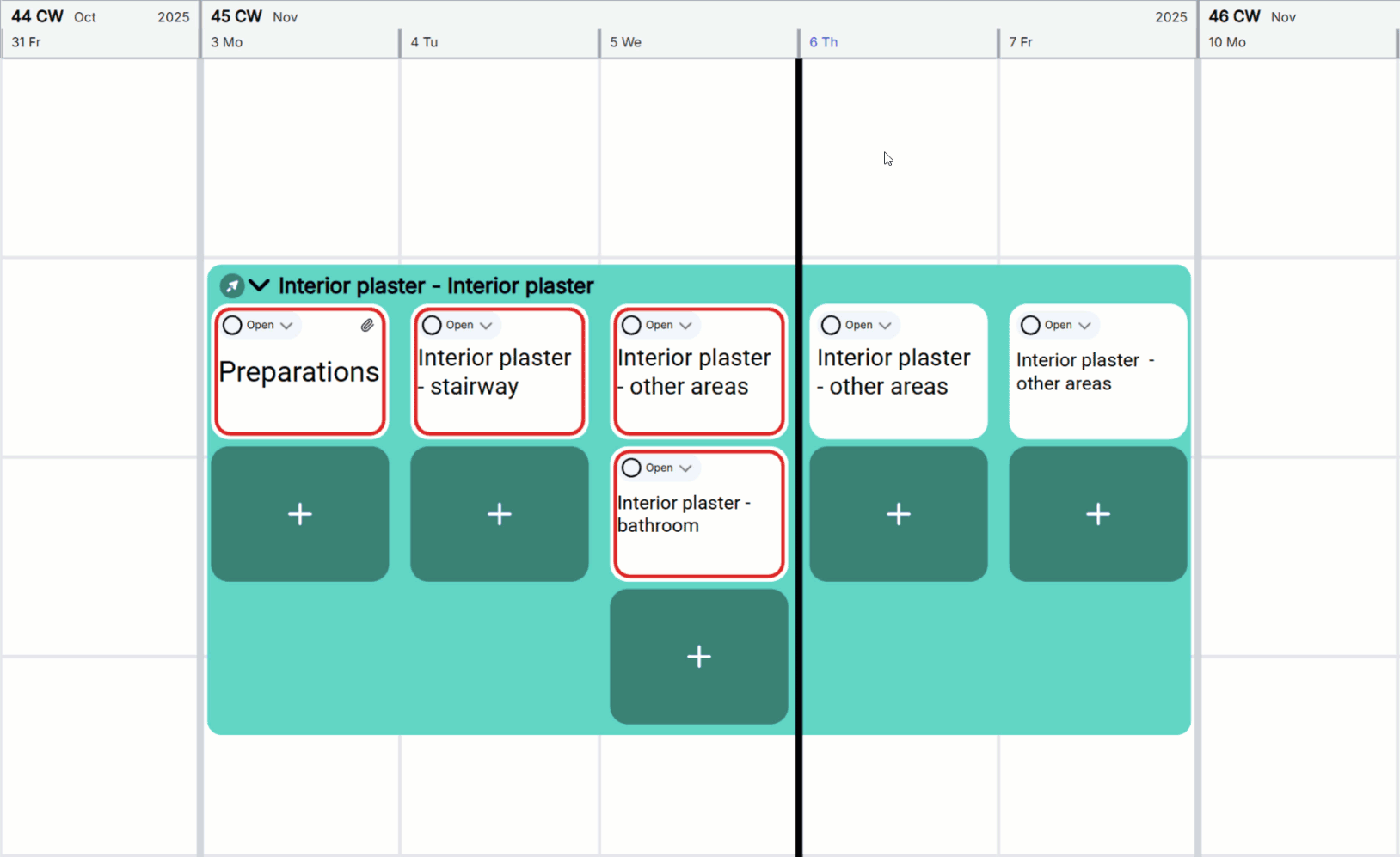

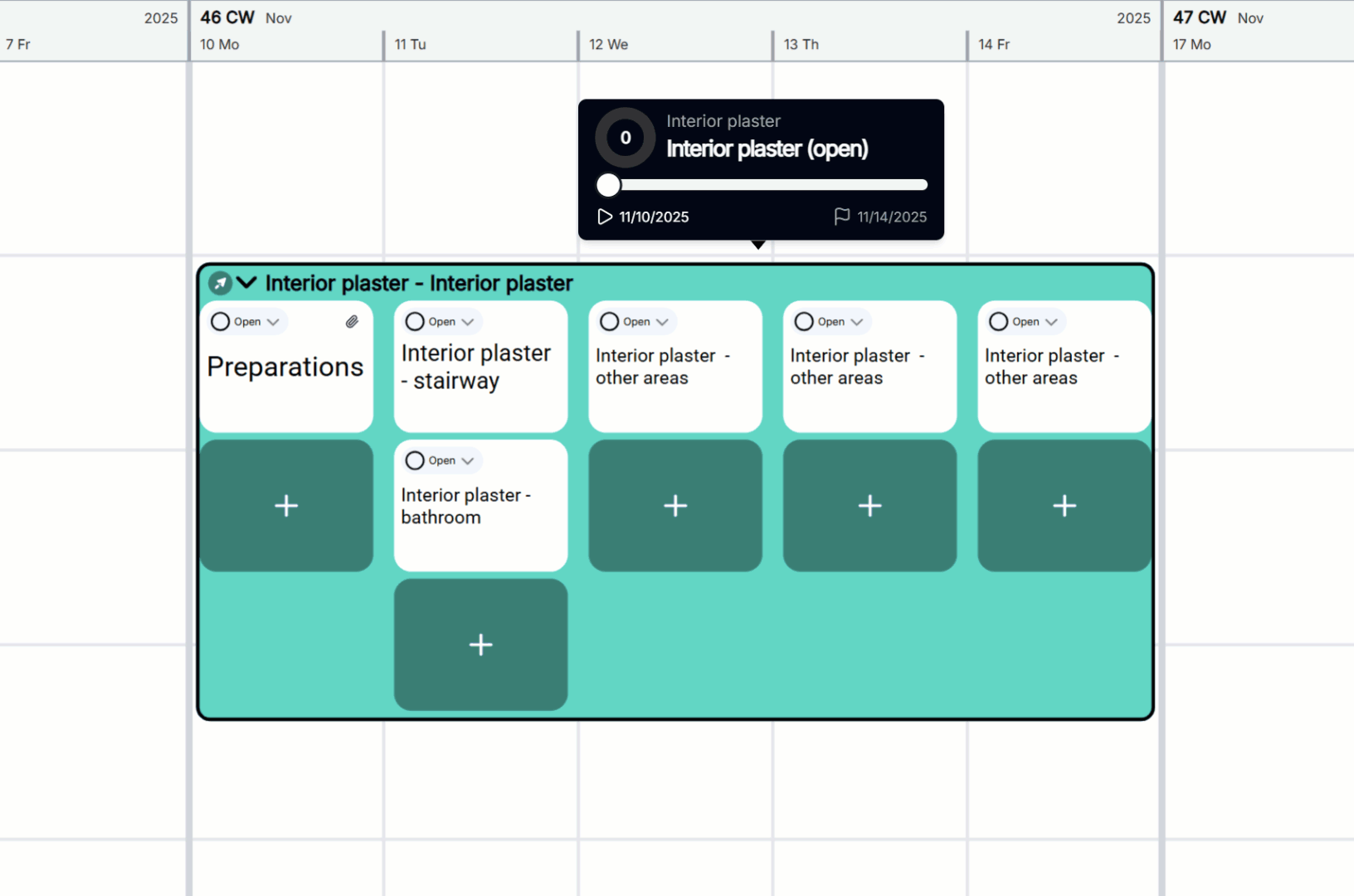

If you want to schedule multiple daily tasks for one day, you can easily create a new card by expanding the process, clicking on the "+ symbol" again, and creating a new task.
Status of daily cards
-

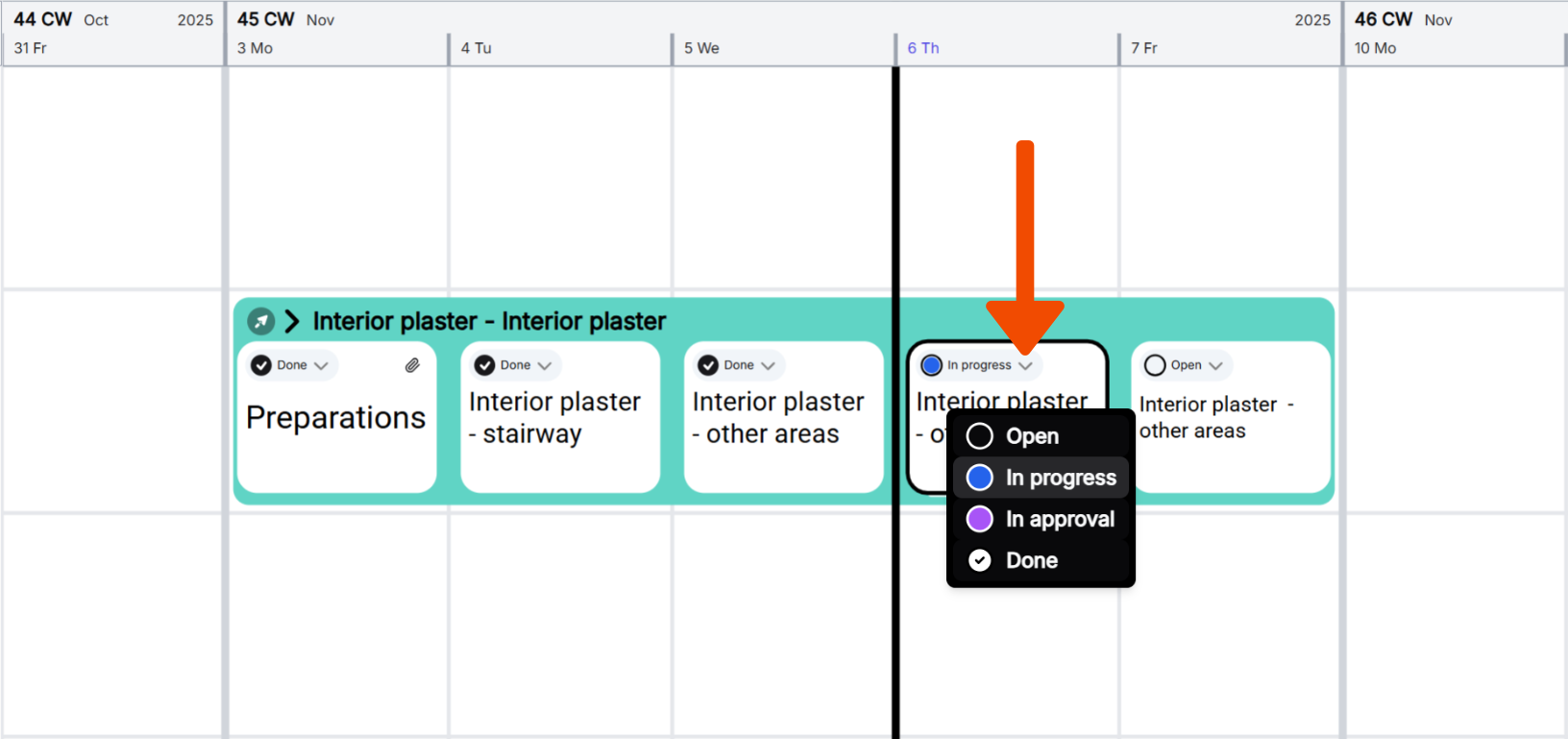

You can change the status of the respective daily task using the drop-down menu.
-
Late cards are marked with a red border.
-
You can set multiple cards to done using the slider function.
-

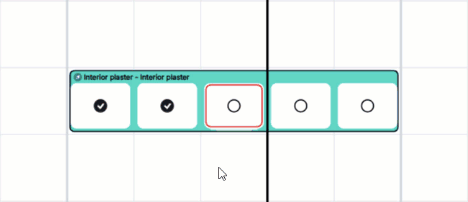

If you are at a zoom level where only the status is displayed, you can change the status by clicking the circle several times: From Open to In progress to In approval to Done.
-
If you have not explicitly defined any tasks, you can only set the status to completed using the slider.
Move and delete daily cards
-

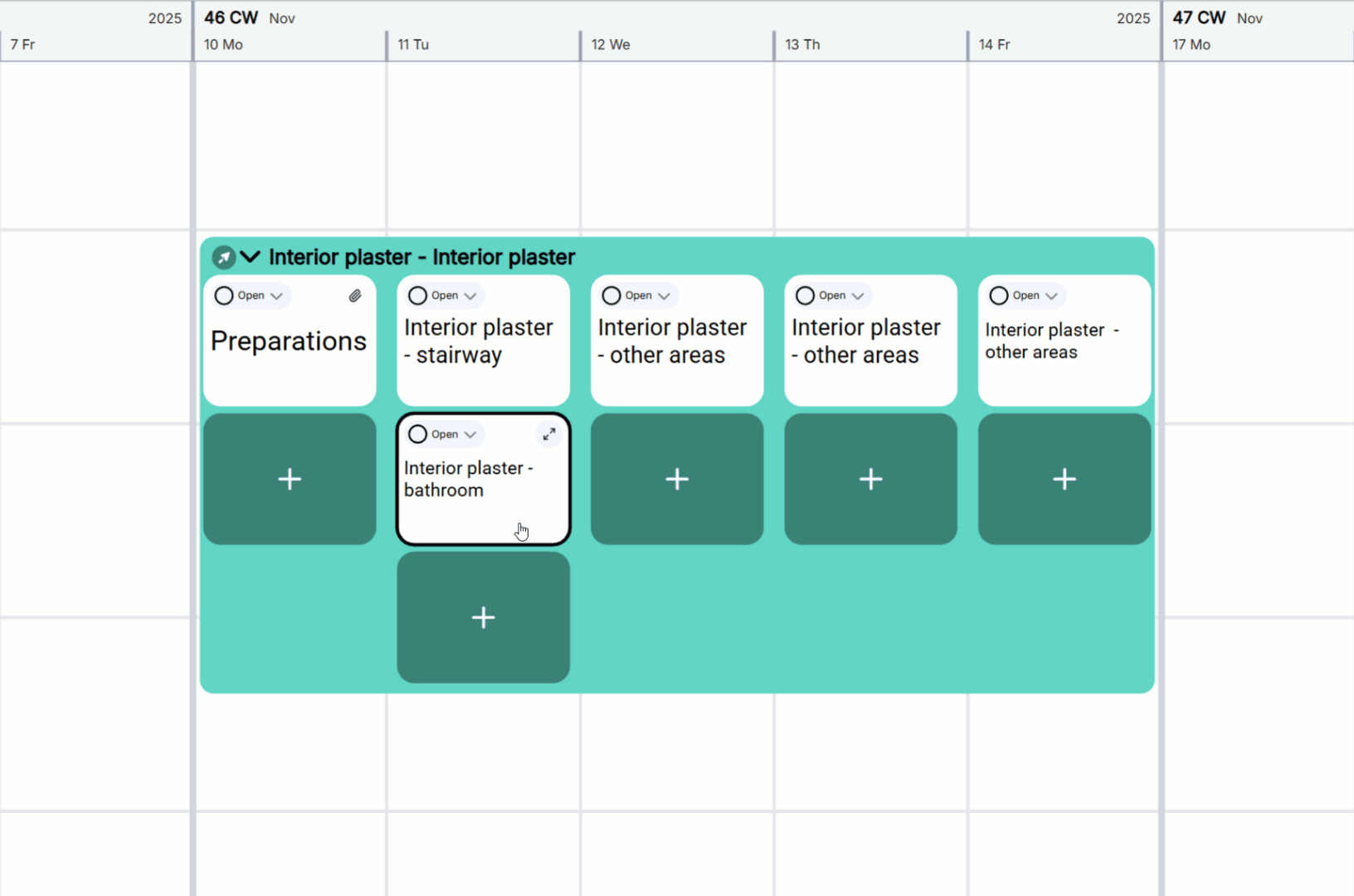

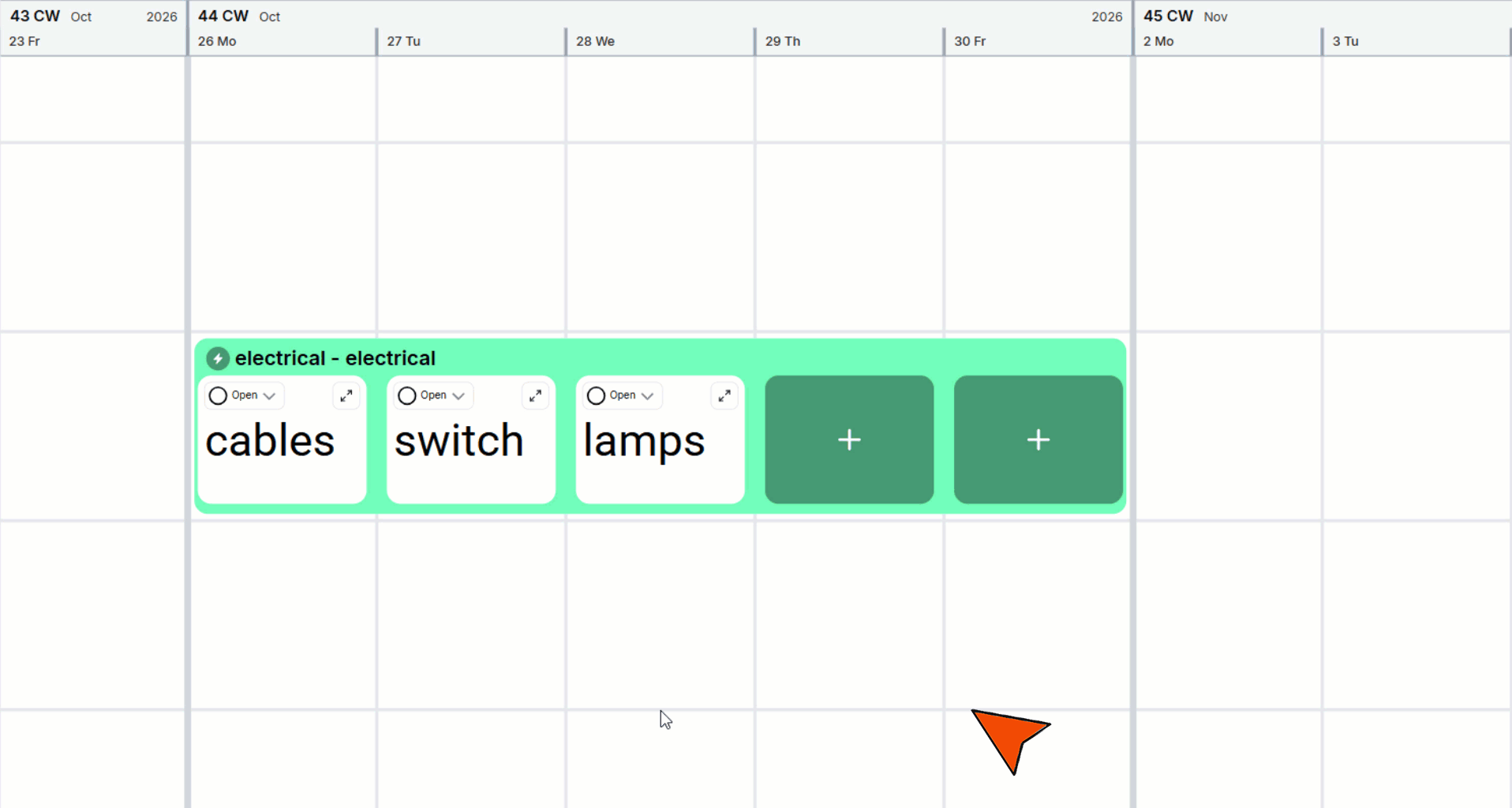

If there are changes to the plan, you can easily move daily cards around using Drag&Drop.
-

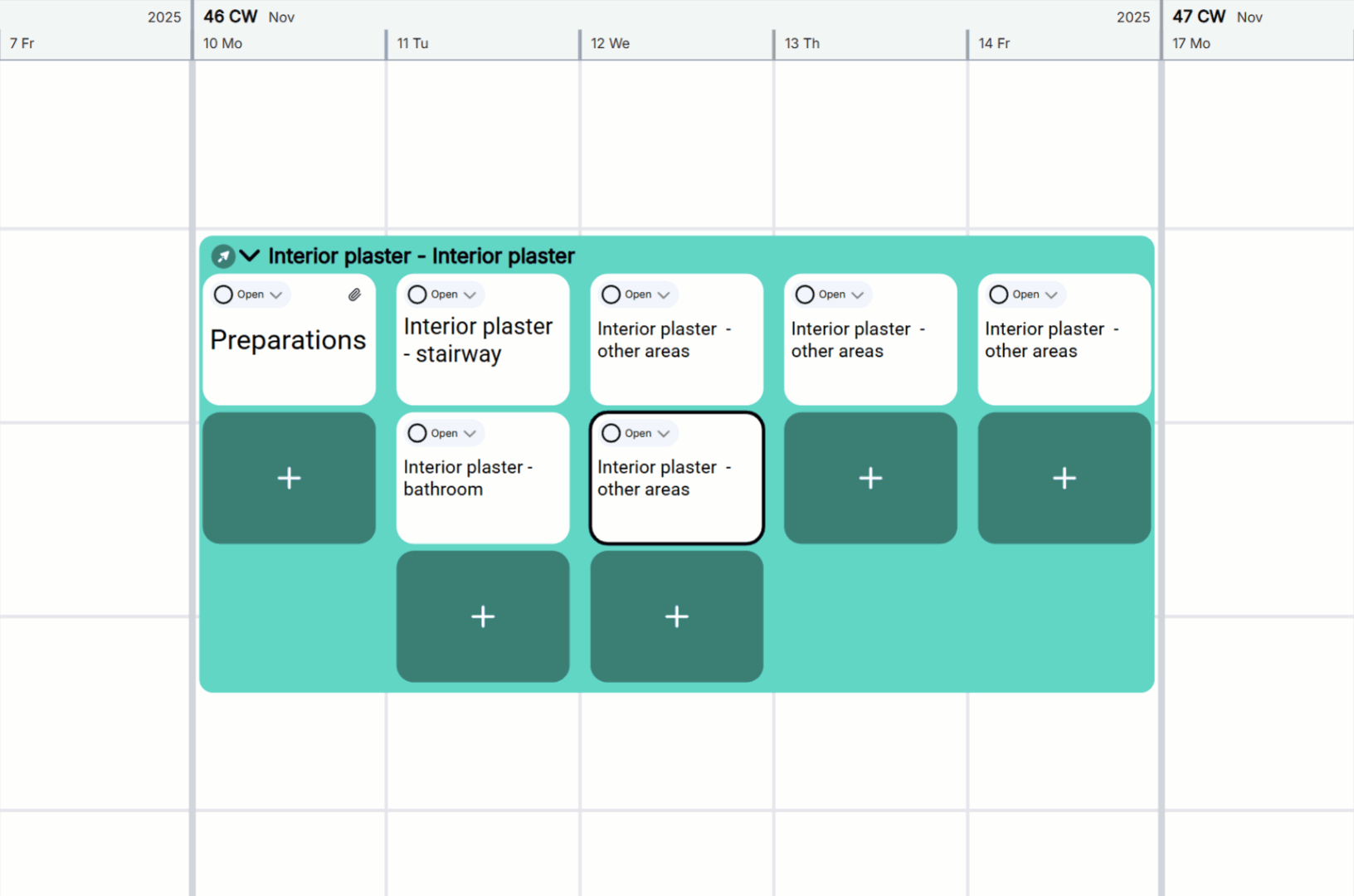

To delete a day card, select it and press the Back button.
-
If you delete a daily card in the first row, this slot will no longer be included in the progress calculation of the process slider.
- The same applies if a daily card is moved using Drag&Drop and the original slot is then empty.
