In this video we show you how to import your data from MS Project to lcmd. The existing schedule is transferred including all information, links and the hierarchy of the summary tasks. In lcmd, you can detail the imported data as daily tasks. Then assign them to the subcontractors so that they report back the status via mobile app directly from the building site. You always have clarity about the current project progress in lcmd.
Import project

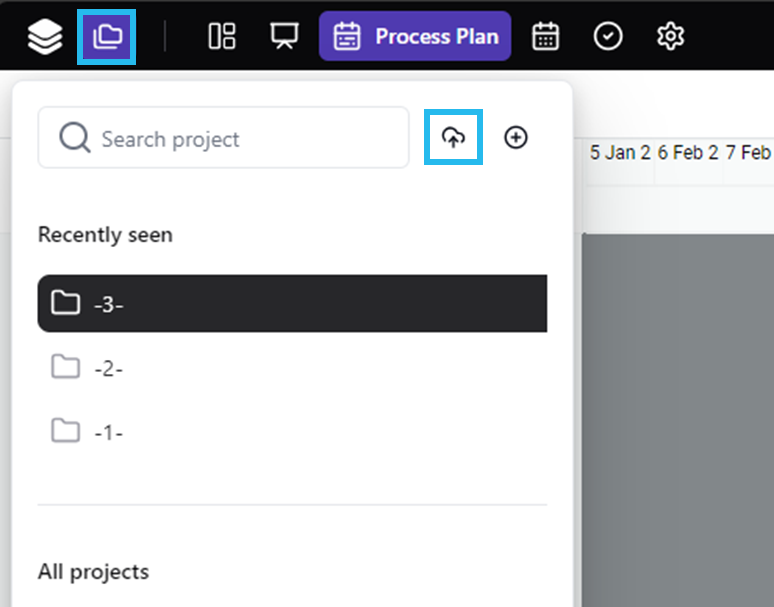

- Click on Upload to import a project.
- Select your project file and wait until it has been uploaded.
- If required, change the project name and the description. Set the default calendar.
- To open the imported project, click in the project list on the left.
- Switch to the process plan to see the schedule.
You do not need to consider any special settings if you want to import data from MS Project into lcmd.
However, you can already assign colors to the trades in MS Project and then import them into lcmd. In lcmd, you can add further trades and subsequently change the color of individual trades.

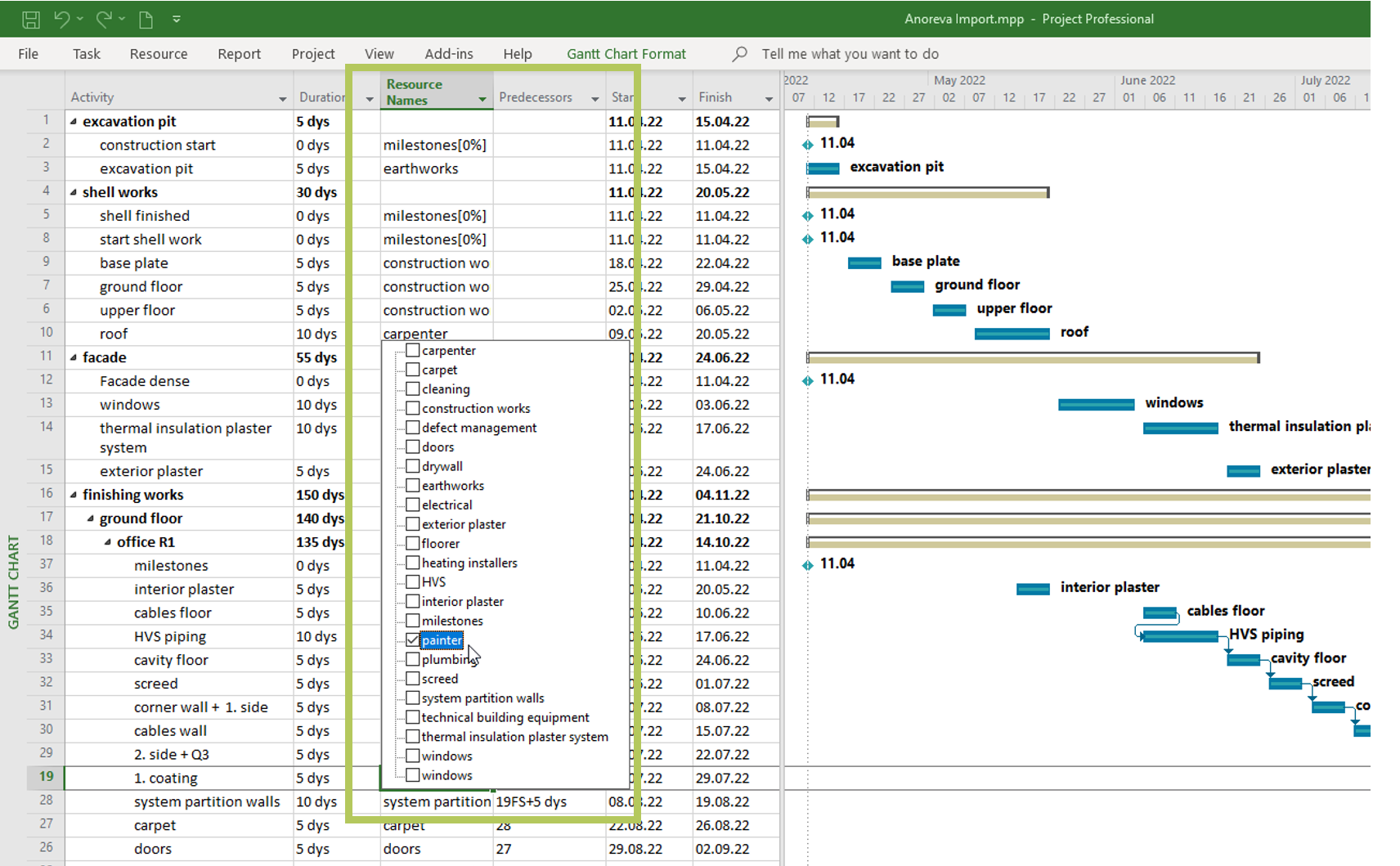

1. assign the trades as resource names to the tasks in MS Project. Please note that only one trade should be assigned to each task.
Increase project readability
You do not need to consider any special settings if you want to import data from MS Project into lcmd.
However, you can already assign colors to the trades in MS Project and then import them into lcmd. In lcmd, you can add further trades and subsequently change the color of individual trades.
1. Your project is imported to lcmd including the start and end date. Please be so kind and assign the trades as resource names to the tasks in MS Project. Please note that only one trade should be assigned to each process.

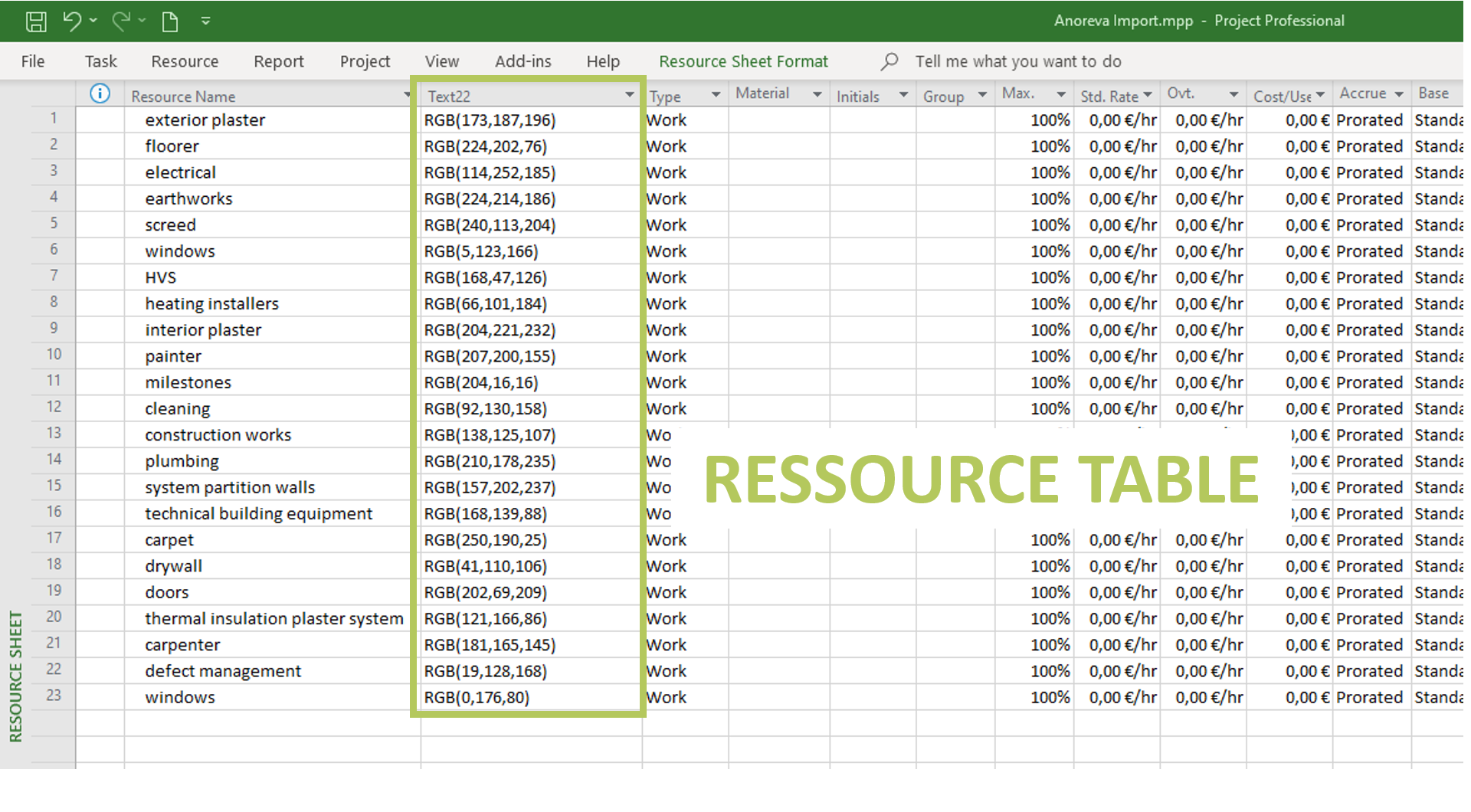

2. To display processes in color in lcmd, enter an RGB code in the "Text22" field in the resource table.
3. Calendars and non-working days that you have used in MS Project are not imported and must be added under Settings in the calendar.
4. This calendar is valid for the current project.
Is the project structure transferred?
1. All summary tasks that you have created in MS Project are transferred to lcmd with their hierarchy and are clearly displayed.
2. The project structure can be further customised in lcmd by insert, indent or outdent, edit and delete areas.
Are the links transferred?
1. All existing links are imported including the dependences.
2. They can be changed later.

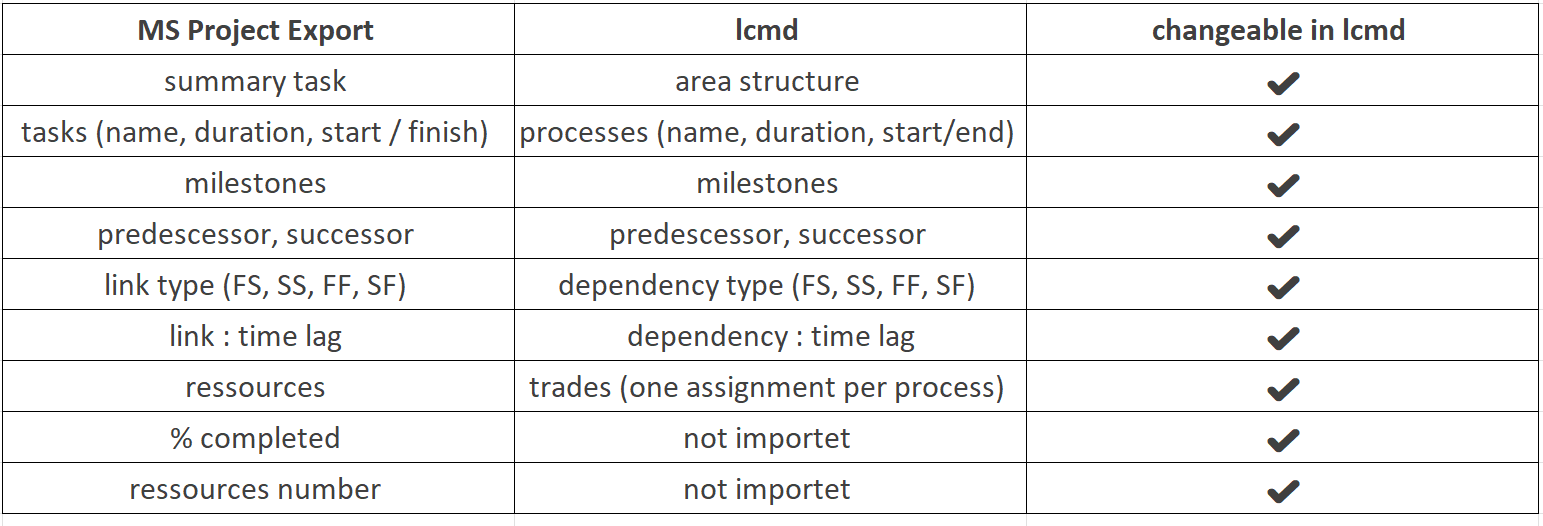

3. In the corresponding article in the Help Centre you will find a complete overview of the data that will be transferred during the import.
Export project from lcmd
1. Process plans can be exported from lcmd into an MS Project format. We have developed an MS Project Add In that allows you to compare two project statuse stands of the detailed data from lcmd.
2. For more information, watch the video MS Project: Add In for target-actual comparison on our YouTube channel.
Tags: Import Project, MS Project, Microsoft Project, MPP, Create Project, Import, MSP
